Patchwork Architecture was founded by Sally Ogle and Ben Mitchell-Anyon in 2011, following the build of the Dogbox.
Following our year on the building site, we set up our studios in Wellington and Whanganui, taking that practical experience back to the drawing board, to help our clients create beautiful, efficient, warm, economical spaces that suit their purpose and location.
The Patchwork studio has since grown to a team of 8, working on residential, urban, and commercial projects across the country.
Following our year on the building site, we set up our studios in Wellington and Whanganui, taking that practical experience back to the drawing board, to help our clients create beautiful, efficient, warm, economical spaces that suit their purpose and location.
The Patchwork studio has since grown to a team of 8, working on residential, urban, and commercial projects across the country.
Showcase
DOGBOX

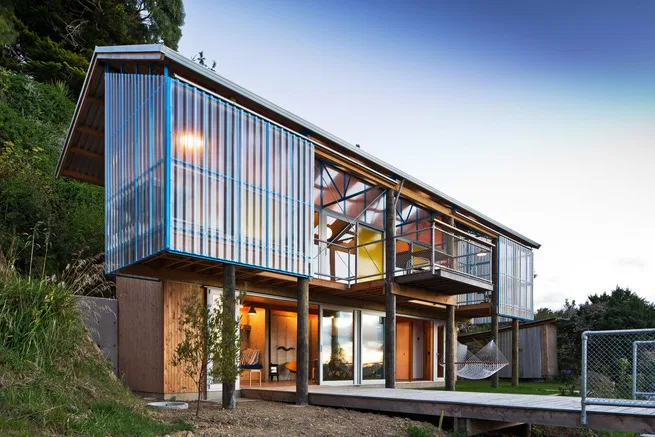

The design of the DOGBOX was directly influenced by 4 rusty trusses purchased off Trade Me, and a small (but very sunny) area of flat ground at the top of a steep section.
The number and dimensions of the trusses defined the overall width and shape of the roof. The house is two stories, with half of the area under the roof being interior space (88 sqm) and half exterior. The exterior half serves as circulation, and includes outdoor rooms which are semi-enclosed by moveable screens.
The lower floor has a poured insitu concrete wall along the back, working both as thermal mass and as a retaining wall to the steep bank behind. This level contains the laundry, kitchen and living areas, and large sliding doors open out onto the garden and the wharf deck.
The upper floor is much lighter in comparison, with plywood lined timber framed walls supporting the steel trusses, which though incredibly heavy are visually light. Twinwall polycarbonate panels separate the rooms and allow for soft high level light.
The house is well insulated, double glazed, and has a Tiny-Rad woodburner for heating the space and hot water.
The physical building of this project was undertaken by Patch Work Architecture . The DOGBOX was completed for just under $200K, in just under a year.
Photos of the construction process can be viewed at www.patchworkarchitecture.tumblr.com
Photo above by Paul McCredie.
The number and dimensions of the trusses defined the overall width and shape of the roof. The house is two stories, with half of the area under the roof being interior space (88 sqm) and half exterior. The exterior half serves as circulation, and includes outdoor rooms which are semi-enclosed by moveable screens.
The lower floor has a poured insitu concrete wall along the back, working both as thermal mass and as a retaining wall to the steep bank behind. This level contains the laundry, kitchen and living areas, and large sliding doors open out onto the garden and the wharf deck.
The upper floor is much lighter in comparison, with plywood lined timber framed walls supporting the steel trusses, which though incredibly heavy are visually light. Twinwall polycarbonate panels separate the rooms and allow for soft high level light.
The house is well insulated, double glazed, and has a Tiny-Rad woodburner for heating the space and hot water.
The physical building of this project was undertaken by Patch Work Architecture . The DOGBOX was completed for just under $200K, in just under a year.
Photos of the construction process can be viewed at www.patchworkarchitecture.tumblr.com
Photo above by Paul McCredie.
Year of Completition
2012
Type
Residential
Role
Design & Build by Patch Work Architecture
